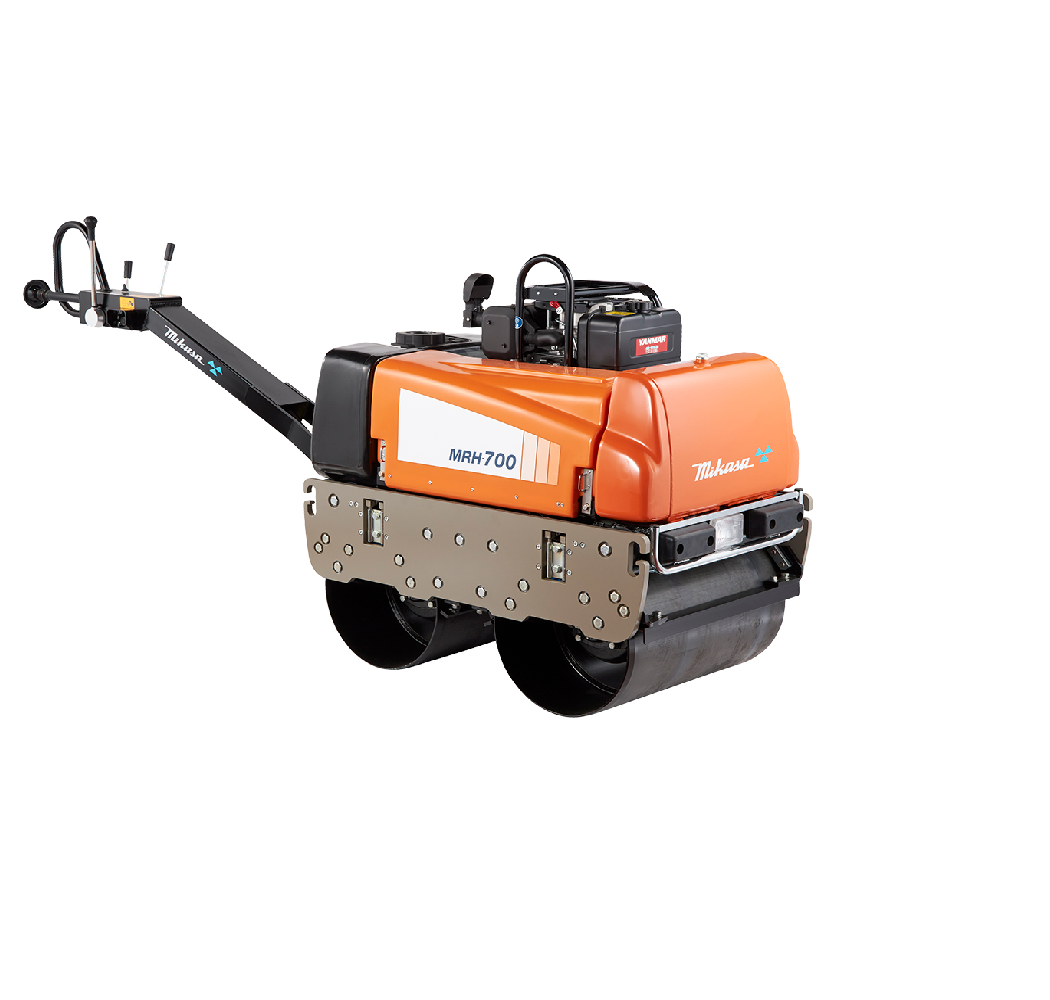

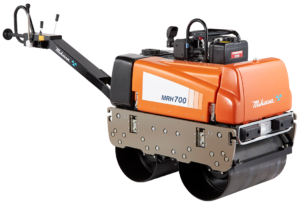

MRH-700DSCB
Vibration Roller with Electric Start
●Hydraulic system for reliable operation and excellent maintenance.
●Travel motor with improved durability.
●Mikasa’s original strainer and plastic water tank prevents the sprinkler from clogging.
●Safety design that the engine can only be started when the travel lever is in the neutral position.
●Head LED light and rubber bumper.
●Electric Start for quick and smooth starting.
●Tacho hour meter for checking engine R.P.M. and operating time.
●Cyclone air filter to extend engine life and reduce maintenance.
●Single-point lifting hooks for easy loading and unloading.
SPECS
| forward/reverse travel lever | 〇 | |
|---|---|---|
| tacho hour meter | 〇 | |
| electric start | 〇 | |
| deadman brake | 〇 | |
| head LED light and rubber bumper | 〇 | |
| drum stopper | 〇 | |
| handbrake | 〇 | |
| safety mechanism for both of up and down hill | 〇 | |
| lifting hook | 〇 | |
| dimensions(mm) | H A | 2,670 |
| W B | 692 | |
| W C | 1,170 | |
| drum size(mm) | dia. | 406 |
| width | 650 | |
| weight(kg) | 700 | |
| centrifugal force(max)(kN/kgf) | 23.5(2,400) | |
| vibrating frequency(Hz/v.p.m) | 55(3,300) | |
| traveling speed(km/h) | 0-3 | |
| max.limited gradeability(%) | 35 | |
| water tank(lits) | 40 | |
| power source kW(PS) | model | L100N |
|---|---|---|
| brand | Yanmar | |
| max.output | 7.4kW/10.0PS |
