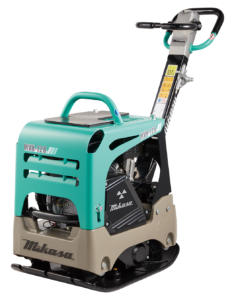

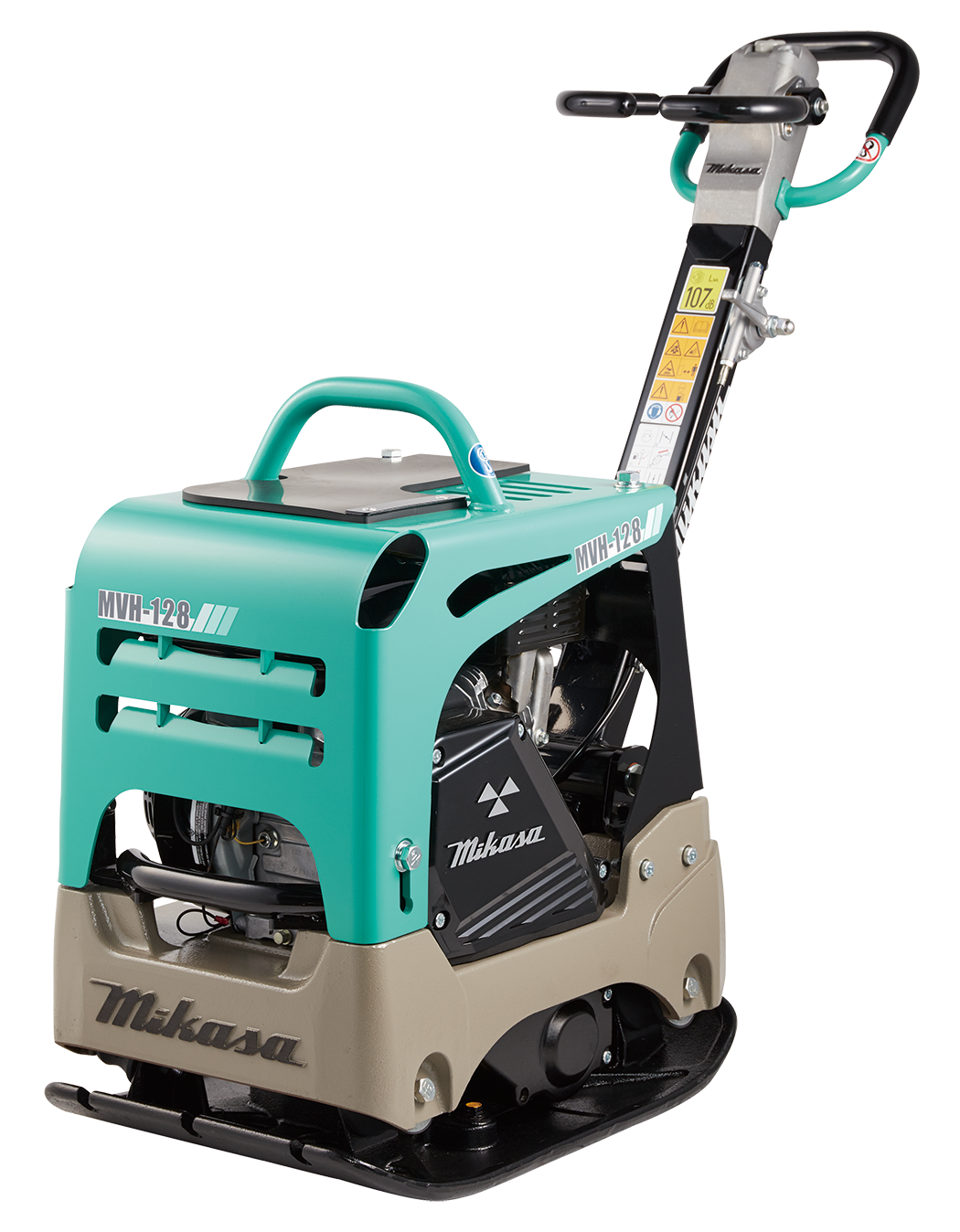

Light Size Reversible Compactor
MVH-128GH
Reversible Compactor with VAS handle
●Smooth forward and reverse drivability proper for compaction work in trenches.
●Ideal light size for paving asphalt.
●VAS handle to reduce hand-arm vibration : patented.
●Forward/Reverse control lever : patented.
●Integrated vibrating plate.
●Cyclone air filter to extend engine life and reduce maintenance.
●Tacho hour meter for checking engine R.P.M. and operating time.
●Single-point lifting hooks for easy loading and unloading.
●Water tank(11L, option).
●Moving cart(option).
| compaction sensor “Compas II” | – | |
|---|---|---|
| integrated vibrating plate | 〇 | |
| monocoque structure | 〇 | |
| electric start | – | |
| cyclone pre cleaner | 〇 | |
| tacho hour cleaner | 〇 | |
| self locking system | – | |
| lifting hook | 〇 | |
| VAS handle : Patented | 〇 | |
| forward/reverse control lever : Patented | 〇 | |
| water tank | 〇(11L, option) | |
| cart | 〇(option) | |
| extension plate | – | |
| dimensions （mm） |
A | 1,030 |
|---|---|---|
| B | 400 | |
| C | 965 | |
| plate size （mm） |
D | 590 |
| B | 400 | |
| weight（kg） | 122 | |
| vibrating frequency（Hz/v.p.m） | 90(5,400) | |
| centrifugal force(max)（kN/kgf） | 23.5(2,400) | |
| max.traveling speed（m/min） | 27 | |
| power source kW(PS) | model | GX160 |
| brand | Honda | |
| max.output | 3.6kW/4.9PS | |
